What is Cryognenic Deflashing

What is Cryogenic Deflashing Technology?

Cryogenic deflashing technology—uses a system whereby rubber or plastic parts are placed in a perforated stainless-steel barrel located in the machine chamber, exposed to extremely cold temperatures (achieved with the use of liquid nitrogen, which is up to -130℃) and then tumbled in barrel and blasted with a polycarbonate media motivated by a high speed(up to 7000rpm/min) wheel.
Because the burrs/flashes have a much thinner surface area comparing with their mass, burrs/flashes “FREEZE” very quickly and become brittle while the mass still not. The tumbling action—combined with the impact of the media—removes the burrs without damaging the part itself.
After the process is complete, parts are returned to room temperature and their properties returns too. The physical properties of your moulded rubber parts are not affected during the deflashing process.
Cryogenic deburring leaves a clean part—with no dust or other residue remaining—with nearly 100% burr removal.
Cryogenic trimming and deflashing are ideal for die cast metal parts, complex rubber parts, precision electrometric parts, medical parts and micro electronic parts due to its unique features of high productivity, high precision and lower cost.

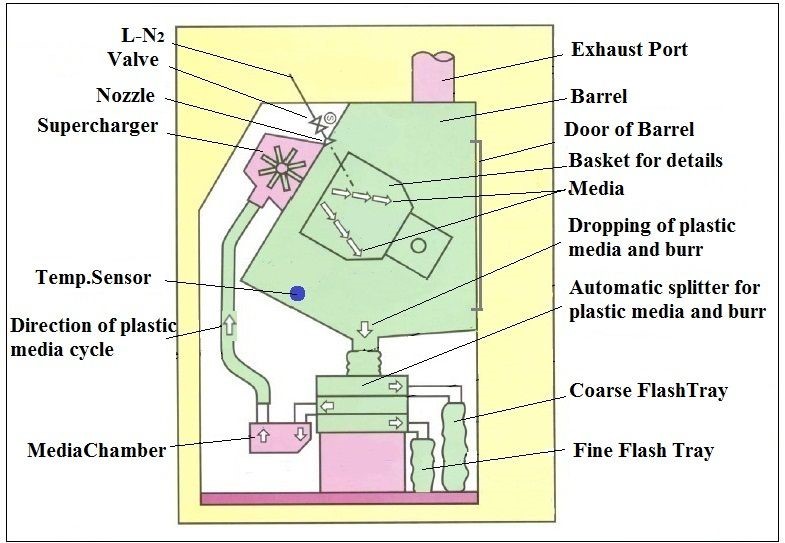

    Principal Flow Chart

What is Cryogenic Deflashing Machine‘s Constitution?

A typical cryogenic deflashing machine consists of a stainless-steel cabinet insulated with dense polyurethane foam. Located inside the cabinet are the blast chamber, the liquid nitrogen nozzle, and the opening for the throw wheel.
Plastic shots ranging size from 0.3 to 2.0mm are deployed. These shots do not cause rust or part contamination and sucked by machine inner high negative pressure, and then to be blasted by high speed wheel . All major components of the machine (motors, valves, controllers, etc.) are located outside of the cabinet and isolated from the temperature variations and moisture.These are maintenance-friendly design and reduce component failure in your machine.
In your machine, there must be room within the components barrel for the parts to tumble because it is the tumbling action that exposes the parts to both the Nitrogen and the media stream. The actual size of the barrel should be at least twice the size of your load.

As the Manufacturer of cryogenic deflashing machines, we offer you options such as various capacity choices, programmable controllers with numerous deflashing “recipes” for automatic operation, message centers, reporting, historical data etc

                                                                                            Structure Drawing

What Benefits the Cryogenic Deflashing Technology Can Bring to You?

Cryogenic deflashing provides you various advantages over manual deflashing and other traditional deflashing methods.
1. Greater Productivity. Cryogenic deflashing trims parts in seconds.
2. Better Product Quality. The process maintains part integrity and critical tolerances.
3. The cost per part is generally well below any alternative technique.
4. Since it is a batch process, the price per piece is far less as many more parts can be processed in a given amount of time.
5. The process offers consistent results from part to part.
6. Cryogenic deflashing extends mold life. Rather than replace or repair a mold (which typically involves downtime and high cost), the parts can be deflashed. This is typical of parts molded at the end of their product lifetime.
7. Simple Operation. Highly automated, today’s cryogenic deflashing equipment is easy to use.
8. The process is computer controlled, therefore removing the human operator variable from the process.
9. Cryogenic deflashing is non-abrasive.
10. Environmentally Sound. The nitrogen cryogen can be recycled or vented safely to the atmosphere. In addition, cryogenic deflashing systems are typically enclosed to minimize noise and eco-friendly.
