Intro:

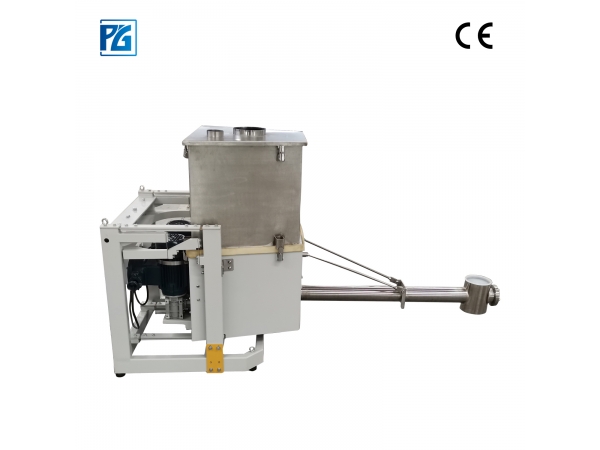

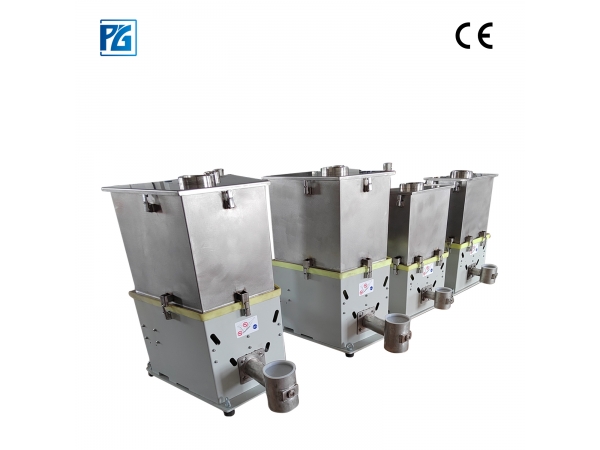

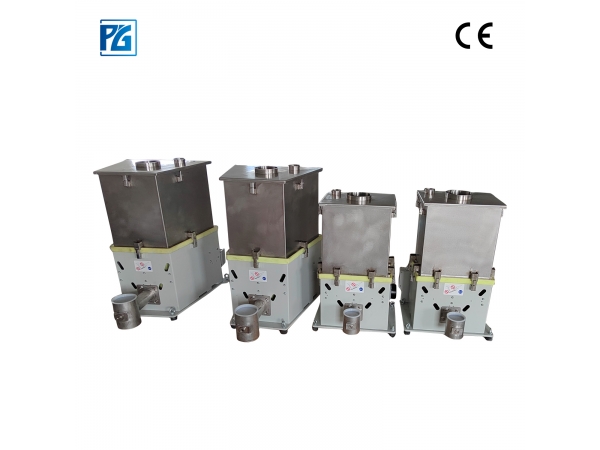

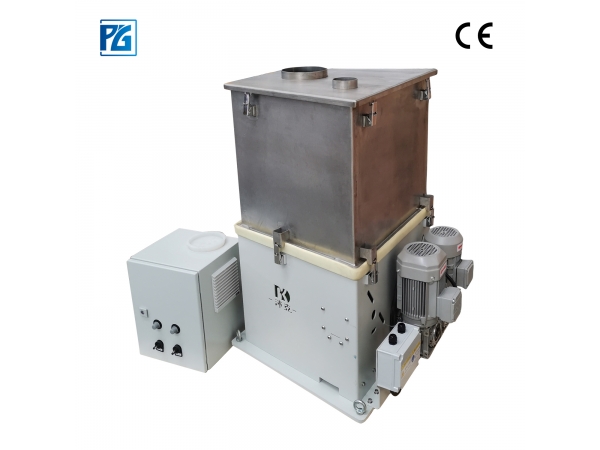

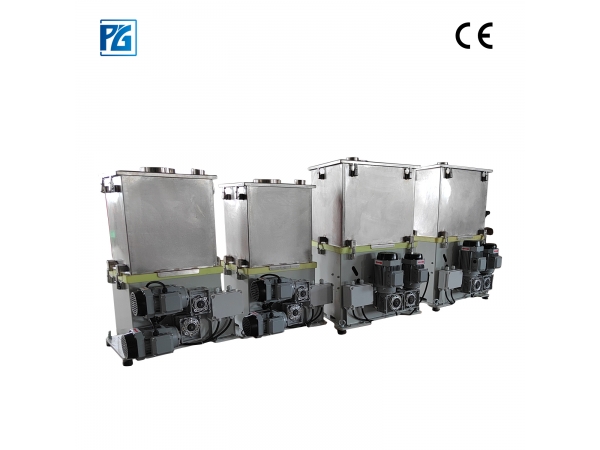

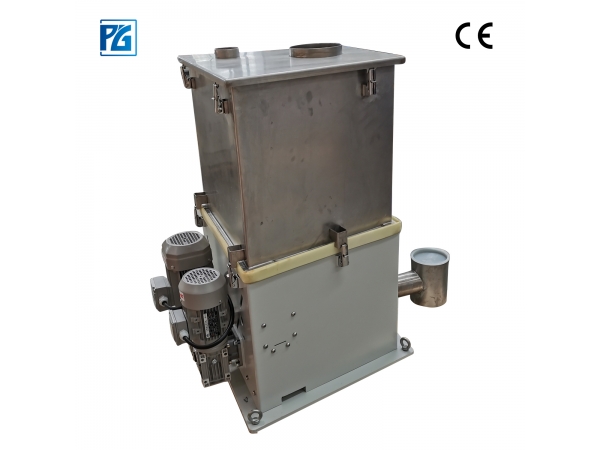

The PG-FP (FLEXHOPPER) solves the powders that ordinary screw feeders cannot handle — damp, sticky, low-flowability and easy-to-compact materials. External paddles gently massage a flexible PUR hopper wall to keep material moving, without an agitator ever touching or damaging the product.
Features:
• All-round bulk-material feeder, especially for humid, low-flowability powders.
• External paddle massage of the flexible PUR hopper gives gentle, reliable material flow; the stirring mechanism never touches the material, so fragile or sensitive products are not damaged.
• All material-contact parts are SUS304 with mirror-polished inner surface.
• Cantilever sling-type weigh frame with top-beam load cell damps vibration and rejects horizontal interference.
• Separated stirring and feeding motors, each with independently adjustable speed.
• Easy to disassemble and clean, convenient for maintenance and product changeover.
• Choice of spring screw or solid single screw output.
• Ethernet interface reserved for remote control; high 1/100000 weighing resolution.
Specifications
|
Parameter |
PG-FP-48 |
PG-FP-57 |
PG-FP-89 |
|
Capacity range (kg/h) |
20–100 |
30–150 |
100–800 |
|
Hopper volume (L) |
40 |
80 |
200 |
|
Load cell range (kg) |
50 |
75 |
200 |
|
Net weight (kg) |
86 |
140 |
200 |
|
Dimensions L×W×H (mm) |
700×550×900 |
770×595×1000 |
1100×710×1040 |
|
Power (AC380V 3-ph) |
Feed 0.25 kW + stir 0.15 kW |
Feed 0.37 kW + stir 0.2 kW |
Feed 0.55 kW + stir 0.4 kW |
|
Output method |
Spring screw or solid single screw (all models) |
|
|
|
Dynamic accuracy |
±0.5% (all models) |
|
|
|
Resolution |
1/100000 (all models) |
|
|
|
Discharge tube |
Φ48×3 mm |
Φ63×3 mm |
Φ89×3 mm |
Typical materials: resin particles and powder, calcium carbonate, glass fibre, talcum powder, titanium white, carbon black, flame retardants and antioxidants.
