Intro:

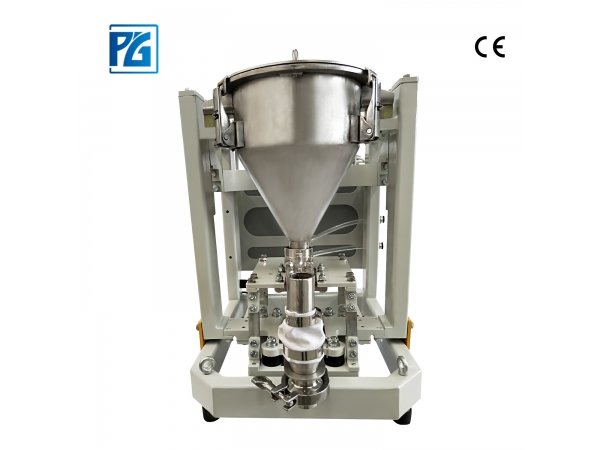

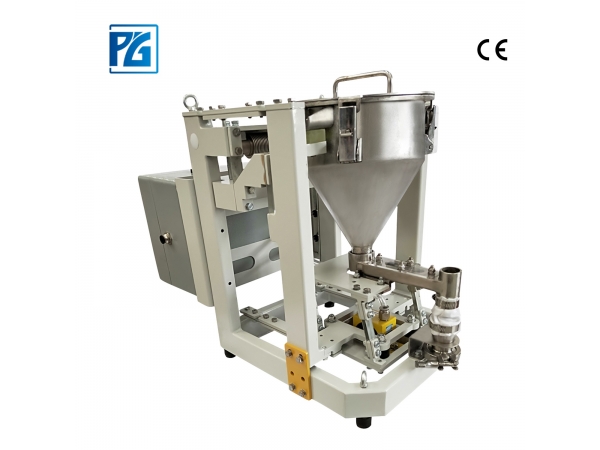

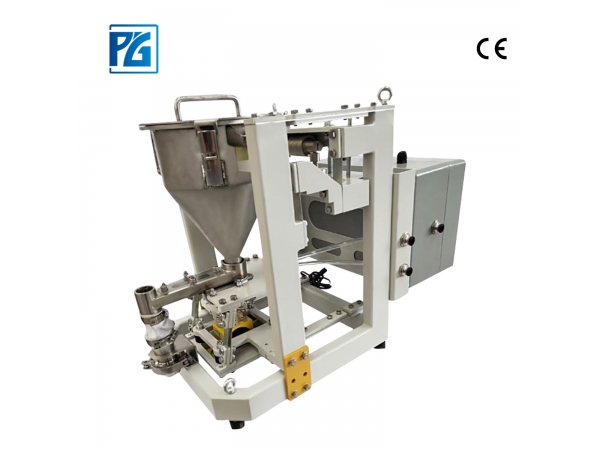

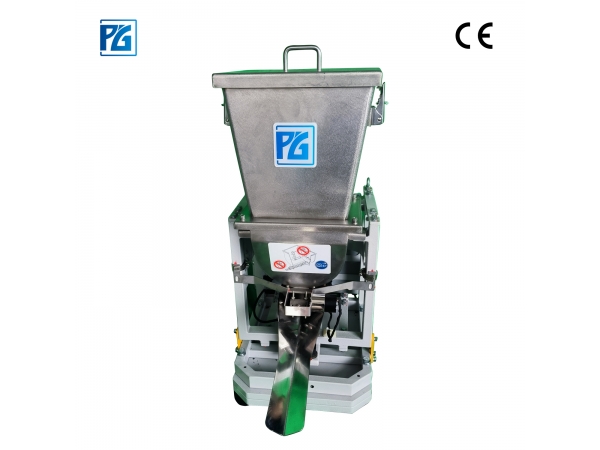

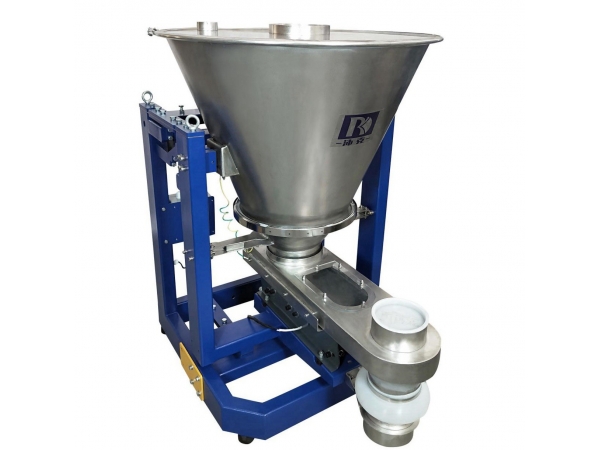

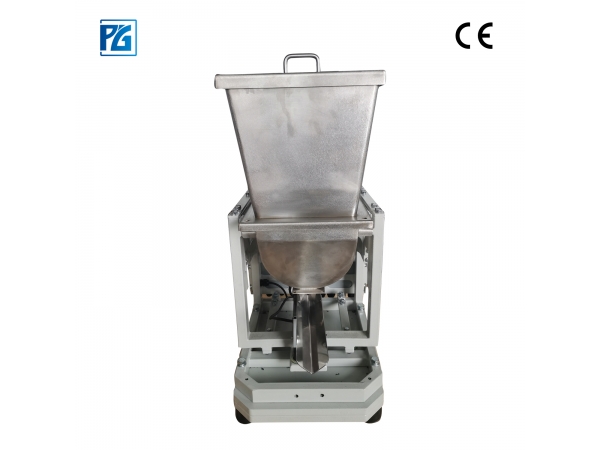

The PG-FZ feeds the materials that screw feeders damage or jam — flakes, glass fibre, cylindrical and irregular recycled shapes. An electromagnetic vibrating tray moves material smoothly without grinding, shearing or breaking it, with almost no wear parts and virtually no maintenance. A pneumatic version is also available.
Features:
• Gentle vibration feeding does not damage the material — ideal for flakes, fibres and fragile or irregular shapes.
• Cantilever sling-type weigh frame with top-beam load cell damps vibration and rejects non-weight interference.
• High-quality vibrator components deliver a stable, consistent frequency and amplitude for accurate feed rate.
• RS-485 digital weighing transmission — no attenuation, strong anti-interference.
• Electromagnetic vibrating tray means minimal machine wear and almost no maintenance parts.
• Pneumatic vibrating-tray version available.
Specifications
|
Parameter |
PG-FZ-200 |
PG-FZ-400 |
PG-FZ-800 |
|
Capacity range (kg/h) |
50–300 |
300–1000 |
700–2000 |
|
Hopper volume (L) |
25 |
80 |
300 |
|
Load cell range (kg) |
50 |
150 |
250 |
|
Net weight (kg) |
80 |
150 |
200 |
|
Dimensions L×W×H (mm) |
1035×810×1490 |
1150×900×1500 |
1250×980×1600 |
|
Power |
AC220V* 1-ph, 0.12 kW |
AC220V* 1-ph, 0.2 kW |
AC220V* 1-ph, 0.4 kW |
|
Dynamic accuracy |
±0.5% (all models) |
|
|
|
Min. weight sensitivity |
1 g |
2 g |
2 g |
\* The catalogue PDF misprints the 400/800 rows as "AC200V" and "AC2000V"; the correct supply is AC220V, single-phase — please confirm with engineering before publishing.
Typical materials: flakes, glass fibre, cylindrical material, and irregular-shaped material from recycling/recovery.
Line selection at a glance
|
Line |
Mechanism |
Best for |
Capacity span |
|
PG-FW |
Single screw |
Free-flowing granules / pellets |
10–2000 kg/h |
|
PG-FT |
Twin screw |
Powders, pigments, fibres, easy-bridge/flush |
20–1500 kg/h |
|
PG-FT Micro |
Micro twin screw + digital cell |
Ultra-small / lab high-precision powder |
0.3–30 kg/h |
|
PG-FP (FLEXHOPPER) |
Flexible paddle-massaged PUR hopper |
Damp, sticky, low-flow powder, glass fibre |
20–800 kg/h |
|
PG-FL (H) |
Pump + spray, optional heated |
Liquids, plasticisers, silane, DOP, maleic anhydride |
1–120 kg/h |
|
PG-FZ |
Vibrating tray (electro-magnetic / pneumatic) |
Flakes, glass fibre, irregular regrind |
50–2000 kg/h |
Common across the PG range: cantilever sling-type top-beam weigh frame · servo + planetary-reducer drive · closed-loop speed-PID (+ time mode) · self-learning PI auto-tuning with anti-interference backup · mirror-finish anti-bridging hopper · pull-out / detachable cleaning · Ethernet remote interface (PROFIBUS-DP / Profinet / Modbus RTU optional) · ±0.5% dynamic accuracy (PG-FT-15 ±1%) · material trial on customer sample.
