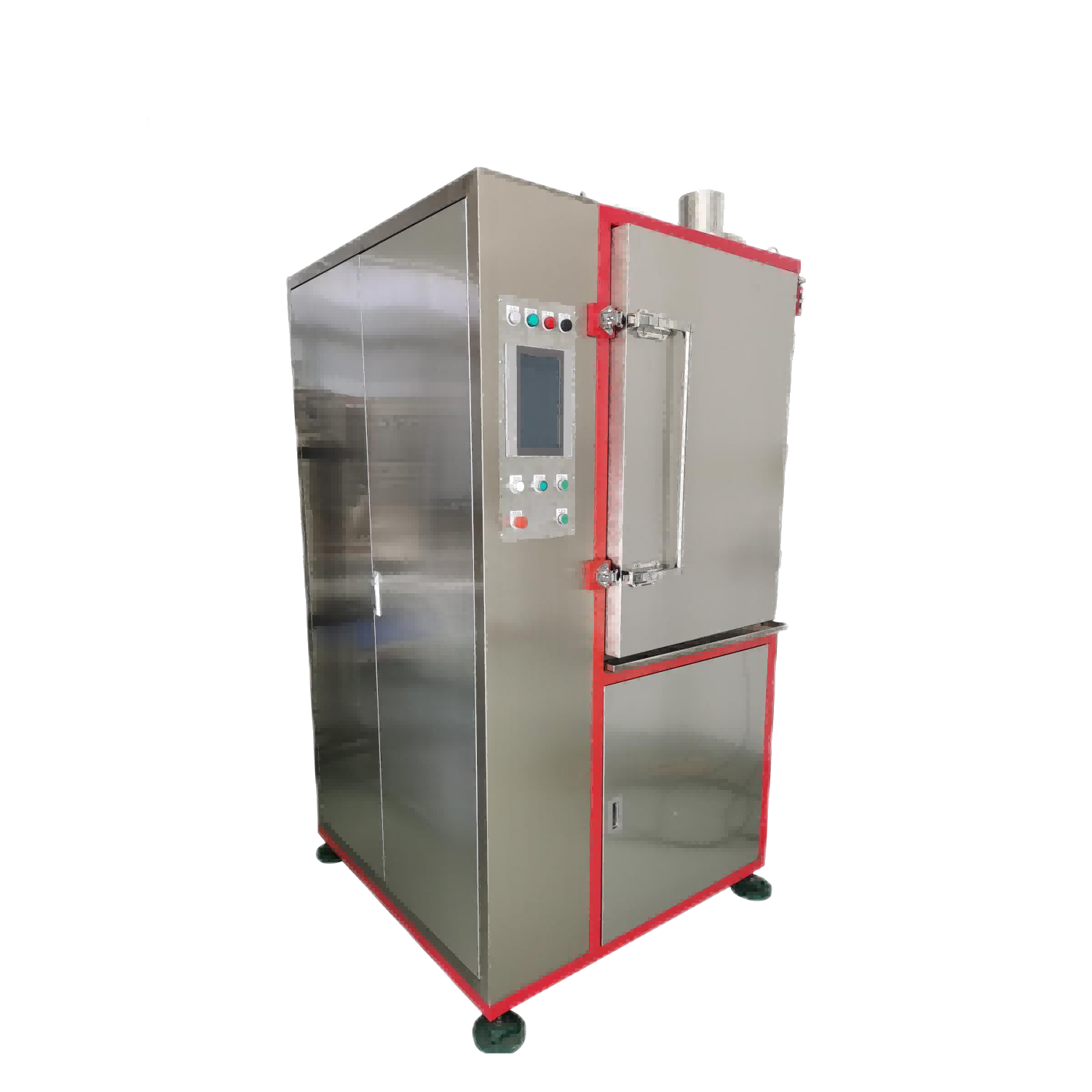

Cryogenic Deflashing Machine

Cryogenic Deflashing Machine

Model PG-120T

Cryogenic Deflashing Machine

Model PG-120T
Size(L*W*H):           1200mm*1250mm*2200mm
Weight:                     900kg
Power Supply:          AC380V 50/60HZ 3Ph
Electrical Capacity:   8kw
Temperature:            -130℃~50℃
Pressure:                  0.5~0.7Mpa
Barrel Capacity:        120L
Effective Capacity:    40L
Wheel Speed:           3000rpm-7000rpm
Cooling Media:          Liquid Nitrogen
Machine Material:     SUS304
Operation Mode:      Touch Screen
    PRODUCTION DESCRIPTION

    PROCESSING PRINCIPLE
    With the decrease of the temperature, rubber/plastic parts enters into hardened, brittle, and crystallized process, its flexibility is gradually lost. It is easily broken by external force when it is under brittle temperature. Flash of the molded products is generally much thinner than finished product itself, it become brittle earlier than product in the low temperature. Cryogenic deflashing machine applies this principle, works in the time range when flash is brittle while products still keeps its flexibility, hit the flashes by high speed projected special plastic media, clear out the brittle burr. The flashes can be easily removed and the product not be damaged.
    Product Feature
    FUNCTIONS
     Our machine is widely used in removing the flashed of small rubber and plastic parts like Orings, gaslets and other molded parts.
     With the cryogenic processing technology, the flashes are firstly freezed and then shoted down the high speed projection media(Ploycarbonate blast). The surface quality of molded rubber and plastic rubber parts can be impoved greatly.
     Product Specification / Models
    APPLICATIONS
     A. O rings, irregular rubber parts with different material and sizes.
     B. Micro electronic product parts
     C. Precision elastomeric parts
     D. Precision injection moulding plastic parts
     E. R & D part runs
     F. Die casting products, like zinc aluminum, magnesium alloy.
    Please submit your inquiries and requests, we will contact you as soon as possible!

    *

    *

    *

    *
