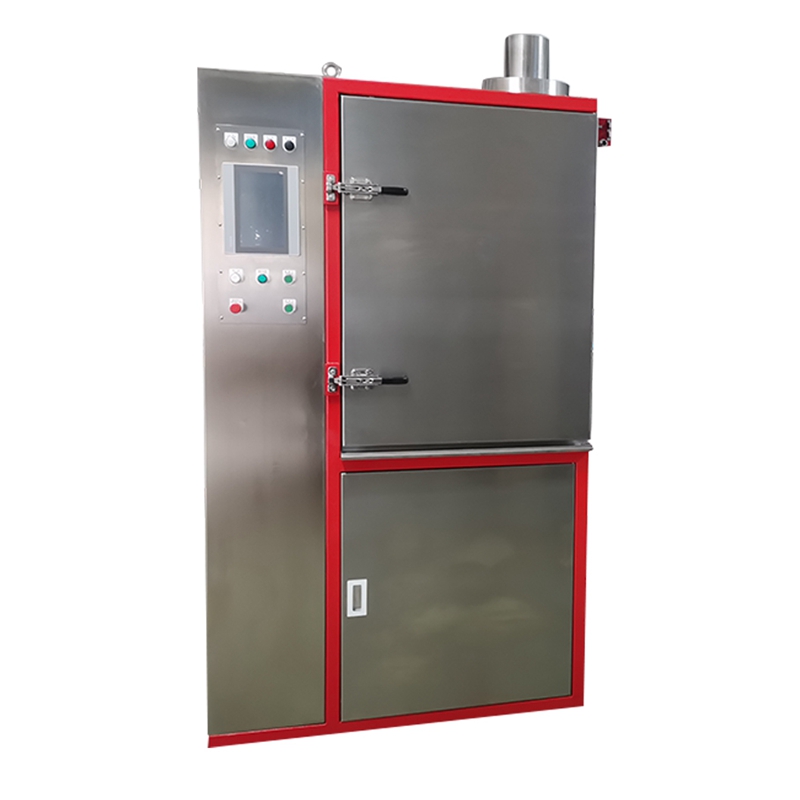

Cryogenic Deflashing Machine

Cryogenic Deflashing Machine

Model PG-60T

Cryogenic Deflashing Machine

Model PG-60T
Size(L*W*H):            1000mm*1000mm*1950mm
Weight:                     700kg
Power Supply:           AC380V 50HZ 3Ph
Electrical Capacity:   6kw
Temperature:             -130℃~50℃
Pressure:                  0.5~0.7Mpa
Barrel Capacity:        60L
Effective Capacity:    20L
Wheel Speed:           3000rpm-7200rpm
Cooling Media:          Liquid Nitrogen
Machine Material:     SUS304
Operation Mode:      Touch Screen
    PRODUCTION DESCRIPTION

    PROCESSING PRINCIPLE
    With the decrease of the temperature, rubber/plastic parts enters into hardened, brittle, and crystallized process, its flexibility is gradually lost. It is easily broken by external force when it is under brittle temperature. Flash of the molded products is generally much thinner than finished product itself, it become brittle earlier than product in the low temperature. Cryogenic deflashing machine applies this principle, works in the time range when flash is brittle while products still keeps its flexibility, hit the flashes by high speed projected special plastic media, clear out the brittle burr. The flashes can be easily removed and the product not be damaged.
    Product Feature

    FUNCTIONS
    Our machine is widely used in removing the flashed of small rubber and plastic parts like Orings, gaslets and other molded parts.
    With the cryogenic processing technology, the flashes are firstly freezed and then shoted down the high speed projection media(Ploycarbonate blast). The surface quality of molded rubber and plastic rubber parts can be impoved greatly.
    Product Specification / Models


    APPLICATIONS
    A. O rings, irregular rubber parts with different material and sizes.
    B. Micro electronic product parts
    C. Precision elastomeric parts
    D. Precision injection moulding plastic parts
    E. R & D part runs
    F. Die casting products, like zinc aluminum, magnesium alloy
