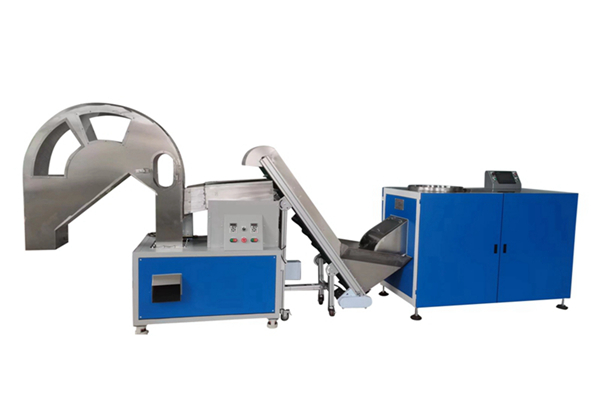

Spin Trim Deflashing Machine

Spin Trim Deflashing Machine

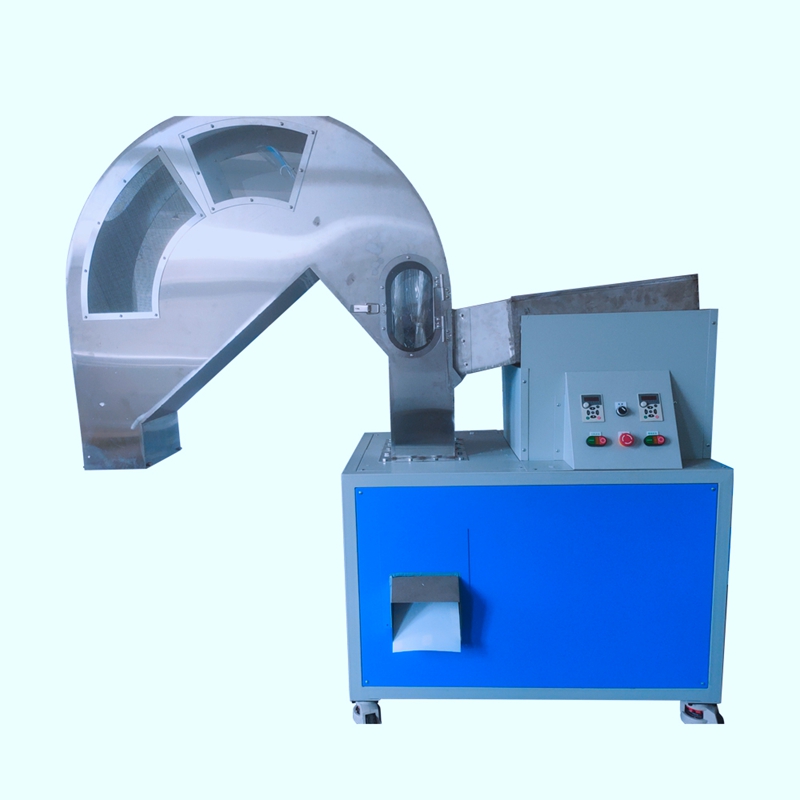

Air Blowing Separator for Spin Trim Machine

Air Engery Blowing Separator
Model PG-AS-300
External dimensions:           Length 2060*width 700*height 2000mm
Frame:                               40*40mm square tube with stoving paint
Sealing plate:                    1.5mm thick with stoving paint
Vibrating hopper:               Length 540*width 400*height 200mm
Damping spring:                OD 40mm, Wire D 4mm, Length 120mm
Vibration motor:                 120W
Power supply :                   3KW 380V 50-60Hz 3Ph.
High speed fan:                 1.1KW
Fan frequency converter:  1.5KW
Vibrating hopper converter:  0.25KW
    Air Engery Blowing Separator

    Usage:
    The air engery separator is applied to be separation machine which is in accordance with spin trim deflashing machine‘s deflashing and seperation process.
    Function:
    To sort the flashes from the deflashed materials after the spin trim deflashing machine automatically.
    Features:

    - Suitable for various rubber parts flashes separation, not only the o-rings, but different shape part like grommets, bumper, gaskets and tubes.
    - Low cost, low voice
    - High Efficiency with high output

    Specifications
    Model PG-AS-300
    External dimensions:           Length 2060*width 700*height 2000mm
    Frame:                               40*40mm square tube with stoving paint
    Sealing plate:                    1.5mm thick with stoving paint
    Vibrating hopper:               Length 540*width 400*height 200mm
    Damping spring:                Outer diameter 40 wire diameter 4 length 120
    Damping spring base:        Rubber embedded screw
    Vibration motor:                 120W
    Power supply :                   3KW 380V 50-60Hz 3Ph.
    High speed fan:                 1.1KW
    Fan frequency converter:  1.5KW
    Vibrating hopper converter: 0.25KW
    Air duct:                             300*200mm
    Adjustable height Fuma wheel: 4 (silent)

    Please submit your inquiries and requests, we will contact you as soon as possible!

    *

    *

    *

    *

    *
