Cryogenic Deflashing Machine

Cryogenic Deflashing Machine

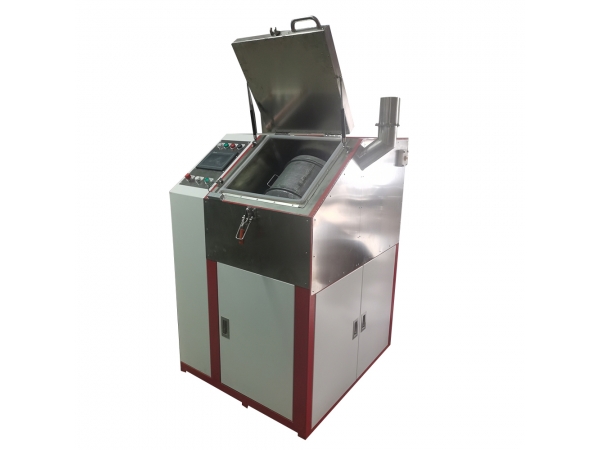

Model PG-40T

Cryogenic Deflashing Machine

Model PG-40T
Size(L*W*H):        950mm*950mm*1900mm
Weight:                      650kg
Power Supply:           AC380V 50HZ 3Ph
Electrical Capacity:   6kw
Temperature:             -130℃~50℃
Pressure:                  0.5~0.7Mpa
Barrel Capacity:        40L
Effective Capacity:    15L
Wheel Speed:           3000rpm-7000rpm
Cooling Media:          Liquid Nitrogen
Machine Material:     SUS304
Operation Mode:      Touch Screen
    PRODUCT DESCRIPTION

    PROCESSING PRINCIPLE
    With the decrease of the temperature, rubber/plastic parts enter into hardened, brittle, and crystallized process, its flexibility is gradually lost. It is easily broken by external force when it is under brittle temperature. Flash of the molded products is generally much thinner than finished product itself, it become brittle earlier than product in the low temperature. Cryogenic deflashing machine applies this principle, works in the time range when flash is brittle while products still keeps its flexibility, hit the flashes by high speed projected special plastic media, clear out the brittle burr. The flashes can be easily removed, and the product not be damaged.
    Product Feature

    FUNCTIONS

    Our machine is widely used in removing the flashes of small rubber and plastic parts like O-rings, gaskets and other press molded or injection moulding parts.
    With the cryogenic processing technology, the flashes are firstly frozen and then blasted down by the high-speed projection media (Polycarbonate media). The surface quality of molded rubber and plastic rubber parts can be improved greatly while the product are not damaged.

    APPLICATIONS

     A. O rings, irregular rubber parts with different material and sizes.
     B. Micro electronic product parts
     C. Precision elastomeric parts
     D. Precision injection moulding plastic parts
     E. R & D part runs
     F. Die casting products, like zinc aluminum, magnesium alloy

    FEATURES

    High efficiency: The machine can replace about 60-80 worker to removing the flashes.
    High precision: It can remove small and hardened flashes which cannot be removed by handworkers and improve precision of the products.
    Low cost: It also has a feature of lower cost comparing with processing the parts by handworkers.

    Please submit your inquiries and requests, we will contact you as soon as possible!

    *

    *

    *

    *

    *
