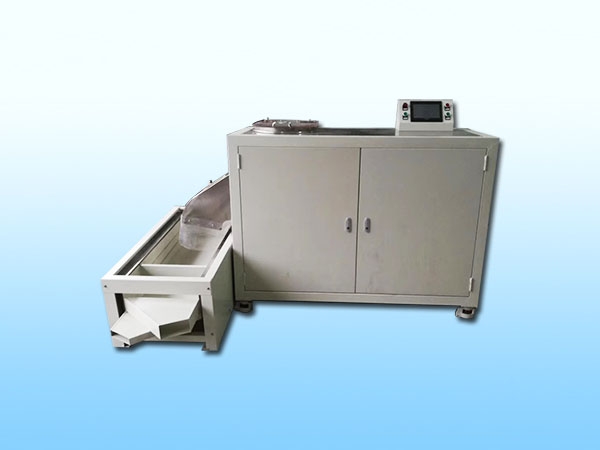

Spin Trim Deflashing Machine

Spin Trim Deflashing Machine

Spin Trim Rubber Deflashing Machine

Spin Trim Deflashing Machine

Model:                                    PG-ST-377
Power Supply:                        5.5KW, 380V 3Ph, 50/60Hz
Size:                                       L1890mm*W660mm*H1320mm
Weight:                                   290Kg
Basket Diameter:                   Ø 377mm
Gas Supply:                           0.4-0.6 Mpa
Wheel Speed:                        0~6000rpm
Process Efficiency:                About 2kg per minute
Batch Time:                        30-50 seconds/ batch
Flashes Separation Mode:    Vibrator Separation
Operation Mode:                   Touch Screen


    Spin Trim Deflashing Machine



    Design Purpose
    To remove waste edges/flashes of rubber parts automatically, to improve the flash cleaning efficiency and precision.
    Work Principle
    By using the theory of aerodynamic & centrifugal force, by high speed rotation along with violent hitting against each part.

    Application Range
    All kinds of rubber parts for a wide range of industry fields.
    Ideal for use in the automotive, oil and gas, aerospace, medical, electronics, and general rubber sectors.

    Machine Features
    1.PLC & HMI control, a plug-and-play equipment, 7.5 inch Touch Screen Panel, user-friendly operation model.
    2.No need freezing, no need liquid nitrogen, traditional molds with tear trim line will be idea, only basic labor and electricity, very low investment and running costs.
    3.Extremely high output, average productivity will be similar as 40~50 workers at the same working time, millions of products can be finished per day.
    4.Ideal for the effective deflashing of small to medium size rubber parts, especially for the O rings.
    5.Divided space room for refilling & operation respectively,a continuous production can be realized.
    6.Patented Cutting Technology for quick and smooth trimming. A safe, affordable and automated process
    7.Automatic Self-Lubrication System for Non-stop Trimming.
    8.High power and speed motor to ensure good performance and stable running.
    Our Machines in Customer‘s Process Workshop

    Productin Workshop
